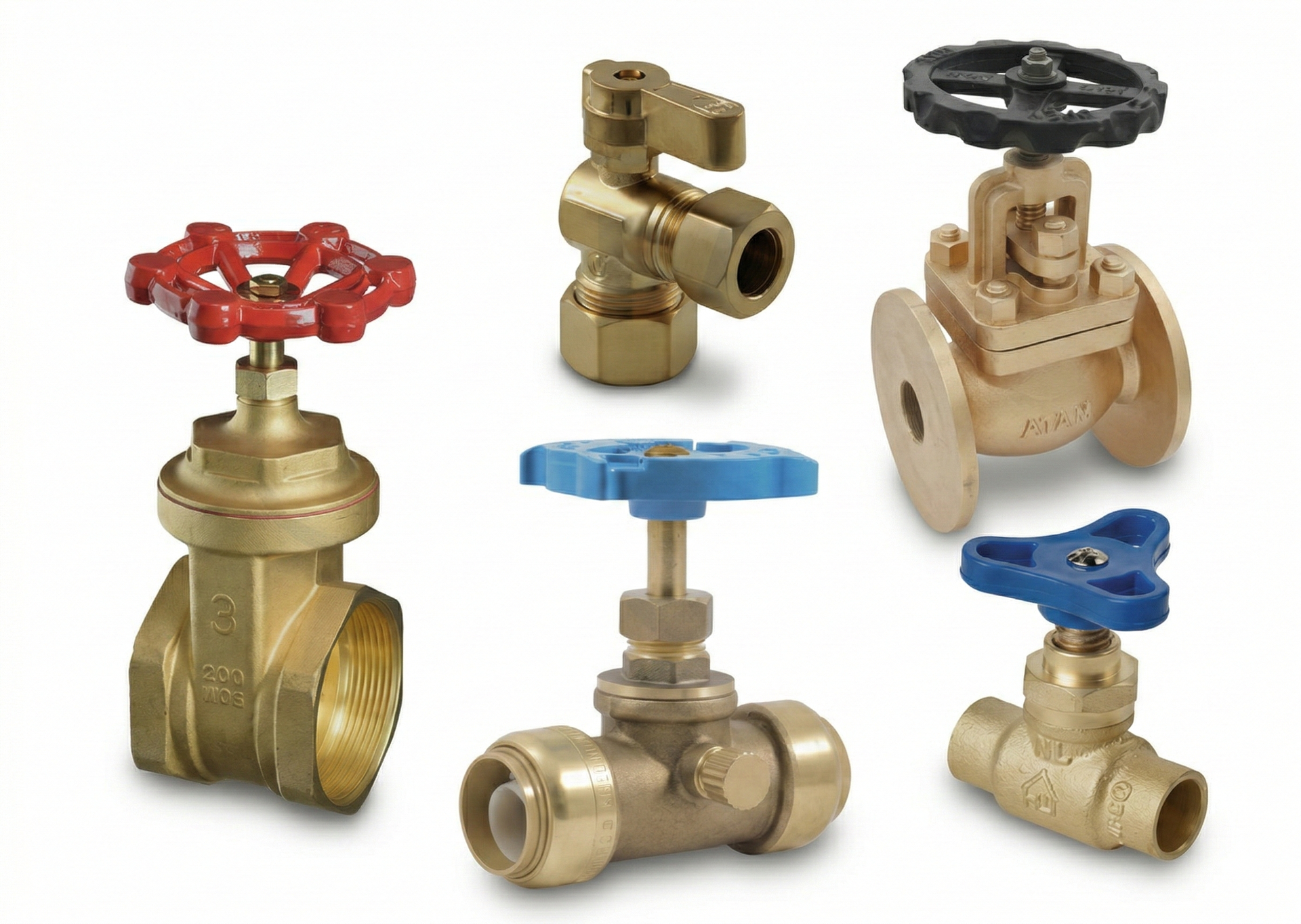

Brass Stop Valves
Description
The valve used to halt the system's liquid or gas flow is called a stop valve. However, it often installs at the piping portion or the end of the pipeline. It primarily closes the water supply to fixtures like sinks and toilets using a home plumbing system. The stop valve can also be used in commercial and industrial settings to stop the pipeline's liquid and gas flow.
Stop valves and insert plugs into their openings to halt the flow of liquids or gases. The plug is usually made of rubber or another soft material. The main structural difference between gate and stop valves is this. While gate valves feature an opening and closing gate, stop valves have a pin put into the opening.
Application : Plumbing Industry / Dishwashing machine / Household water supply taps / Washing machines /
Apply in garden water supply and control / Bathrooms, as well as the primary water supply control
Material : Forged Brass Material / Brass IS-1264.
Any Unique Composition of Brass Materials Required
Working Pressure : 250 PSI
Temperature : -60℃ to 150℃
Threads : BSA / NPT.
Any threads according to the client's specifications.
Size : 1/2" to 2”
Any size is available based on drawing samples and customer specifications.
Finish & Coating : Natural, Nickel, Chrome, Led, Silver, Gold, etc.
